Allegheny River

Semi-Custom Series

Carriage Doors

at Attractive Prices

The Allegheny River Series offers an attractive price for a true carriage door look. These traditional doors feature stile and rail construction and are available in paint or stain grade. They are built using Everite’s noted 1-3/8″ clear wood stile and rail frame. Panel options include flat, tongue and groove, v-grooved or raised. Allegheny River doors can be made using other wood varieties shown below.

Materials

All appropriate for stile and rail overlays, and panels

  • Hemlock: Clear (Stain)
  • Cedar, Sapele: Quarter Sawn
  • Extira: Paint-grade only, panels only
  • Other woods: Available upon Request
  • Smooth MDO: Paint Grade only, panels only
  • Marine plywood: Paint or stain grade, panels only

Exotics:

  • Ipe, White Oak, Honduras Mahogany, Teak, White Cedar, other

Paint-Grade Materials:

  • Clear Hemlock Stiles & Rails with Tricoya Panels.

Stain Grade Materials:

  • Hemlock, Sapele, Western Red Cedar, Douglas Fir, Spanish Cedar, others by request.

PRODUCT SPECIFICATIONS

Construction Details

Specifications

  • 1 5/8″ thick material of choice.
  • 1 3/8″ thick stiles/rails; 1/4 inch thick exterior grade plywood backer.
  • Standard stiles and rails: clear Hemlock, Western Red Cedar or Sapele.
  • Standard Panels:
    • V-Grooved: tongue in groove Hemlock, Western Red Cedar, Sapele or Tricoya.
    • Flat: tongue in groove Hemlock or Western Red Cedar, Sapele Marine Plywood or Tricoya.
    • Raised: Edge Glued Hemlock, Western Red Cedar, Sapele or Tricoya.
  • Other stain-grade materials available upon request.
  • Custom heights and widths available.
  • Uninsulated; R-value: 2.
  • Warranty: 1 year.
  • Factory Stain or Paint finish available.
  • Factory Finishing extends warranty to 2 years.

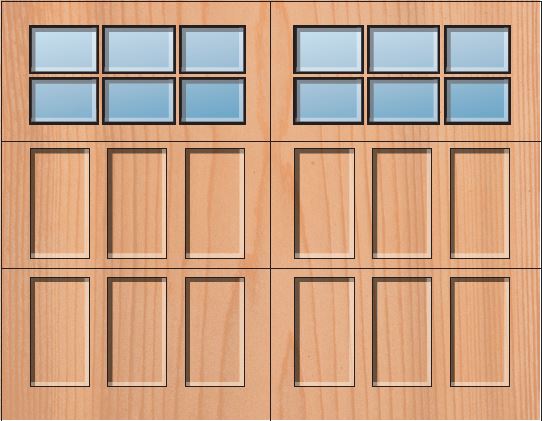

Standard Models
